SMD Single Phase Glass Passivated Bridge Rectifier, DBS series, DB157S Type 4 Pads, Reverse Voltage 1000V Max. Forward Current 1.5A Max.
SMD Single Phase Glass Passivated Bridge Rectifier, DBS series, DB157S Type 4 Pads, Reverse Voltage 1000V Max. Forward Current 1.5A Max.

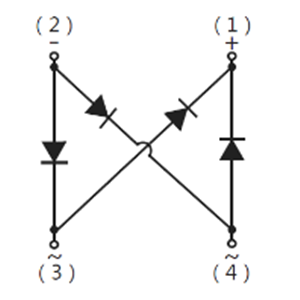

• Reliable low cost construction utilizing molded plastic technique
• Small size simple installation
• High forward surge current capability
• High temperature soldering guaranteed
• 260 °C/10 seconds, at 5 lbs(2.3kg) tension
APPLICATION
• For printed circuit board
| Series | DBS |
|---|---|
| Part Status | Active |
| Supplier Device Package | DBS series, 4Pads |
| Repetitive peak reverse voltage | 1000Volts |
| RMS voltage | 700Volts |
| DC blocking voltage | 1000Volts |
| Average forward output rectified current at Tc= 40°C | 1.5A |
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load(JEDEC Method) | 50A |
| Instantaneous forward voltage at 1.5A | 1.1Volts |
| Junction Capacitance | – |
| Operating Temperature | -55°C ~ +150°C |
| Mounting Type | Surface Mount |
| Package / Case | DBS Series, DB157S Type 4 Pads |
| RoHS Status | RoHS III Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| HTSUS | 8541.21.0075 |
| Standard Package (MPQ) | 1000pcs/Reel, Quantity entered must be multiple of 1000 |
| NCNR | Non-Cancelable/Non-Returnable |
