ESD Diode SOT-23 Series SM05OC

SMD Plastic-Encapsulate ESD Protection Diodes, SOT-23 series, 3 pads, SM05OC Type, Reverse Working Voltage 5V, Clamping Voltage 8.5V Max.@ 1.0A

Key Features:
  • Series: SOT-23
  • Peak power dissipation: 130W (8/20µs)
  • Reverse Working Voltage @I/O to GND: 5.0V
  • ESD per IEC 61000-4-2 (Air): ±30KV
  • ESD per IEC 61000-4-2 (Contact): ±20KV
  • Operating Temperature: -55°C ~ +150°C
See Full Specification

$0.2155

Out of stock
SKU SOT23SM05SCO05
Original MPNSM05OC
Datasheet Data Sheet

Description

SMD Plastic-Encapsulate ESD Protection Diodes, SOT-23 series, 3 pads, SM05OC Type, Reverse Working Voltage 5V, Clamping Voltage 8.5V Max.@ 1.0A

Peak Power Dissipation 130W (8/20µs)
• IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
• IEC61000-4-4 (EFT) 40A (5/50ns)

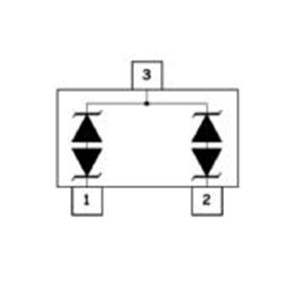

• Protect two Bi-directional lines
• Low clamping voltage
• Low leakage current
• Working voltage: 5V
• Meets MSL 1 requirements

APPLICATION

• Cell phone handsets and accessories
• Desktops, Servers and Notebooks
• Microprocessor based equipment
• Personal Digital Assistants (PDA’s)
• Portable Instrumentation
• Networking and telecom
• Serial and Parallel Ports

Specification

Series

SOT-23
Part Status

Active
Supplier Device Package

SOT-23, 3pads
Peak power dissipation

130W (8/20µs)
Reverse Working Voltage @I/O to GND

5.0V
ESD per IEC 61000-4-2 (Air)

±30KV
ESD per IEC 61000-4-2 (Contact)

±20KV
Clamping Voltage @ I PP = 1.0A, t p = 8/20μs

8.5V
Clamping Voltage @ I PP = 8.0A, t p = 8/20μs

16.0V
Capacitance VR = 0V, f = 1MHz

15pF
Operating Temperature

-55°C ~ +150°C
Mounting Type

Surface Mount
Package / Case

SOT-23-3
RoHS Status

RoHS III Compliant
Moisture Sensitivity Level (MSL)

1 (Unlimited)
REACH Status

REACH Unaffected
HTSUS

8541.21.0075
Standard Package (MPQ)

3000pcs/Reel, Quantity entered must be multiple of 3000
NCNR

Non-Cancelable/Non-Returnable
